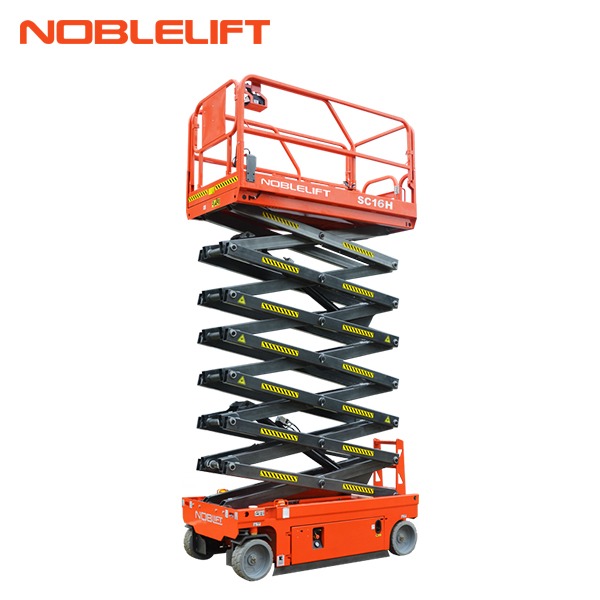

Name: NOBLELIFT SC16H 16M | Lift Sinergi
Brand: NOBLELIFT
SKU: 134
Availability: InStock

NOBLELIFT SC16H 16M | Lift Sinergi

Maximum Work Height			15.7m
Maximum Platform Floor Height			13.7m
Overall Length			2.48m
Overall Width			1.15m
Overall Height			2.58m
Platform Size			2.64x1.02m
Platform Extension Size			0.9m

Category: SCISSOR LIFT, NOBLELIFT
Tags: Scissor Lift

Description
Reviews (0)

Design and Function:
- The NOBLELIFT SC series is designed for various tasks and operations at height.
- Suitable for industrial, energy, logistics, warehouse maintenance, and cleaning sectors.
- The SC016H can reach a working height of up to 16 meters.
Platform and Mechanism:
- Platform dimensions: 2640 mm x 1020 mm with a platform extension of 900 mm.
- Operated directly from the operator station on the platform.
- Equipped with proportional controls to adjust lifting and travel speed.
Ease of Operation:
- Control system allows continuous operation even with a single operator.
- The platform can be folded for storage in tight spaces or to pass under height restrictions.
- Portable controls make on-site troubleshooting easy.
- Chassis features a drawer-type electrical box for easy access to internal components.
Safety:
- Automatic error code system for easy maintenance.
- Emergency lowering system to safely bring operators to the ground during power failures.
- Emergency stop buttons are provided for both lifting and lowering controls.
- Automatic pothole protection system activates when the platform is lifted.
- Tilt protection system triggers alarms and disables all actions except tilt protection.
- Foldable platform barriers ensure safety and storage flexibility.
Maintenance and Durability:
- Durable, non-marking tires.
- Manual overload valve allows the platform to be moved during power failures.
- Hour meter automatically logs operating time for scheduled maintenance.
- Basket door is self-locking for operator safety.
- Heat warning light operates during use.
- Main switch prevents battery discharge when not in use.
Additional Features:
- Automatic braking system prevents slipping on slopes.
- Platform can rotate and move at full height for efficient operation.
- Attachment points allow crane lifting.
- Easily loaded with forklifts using standard sleeves.
Operational Efficiency:
- Travel speed automatically slows as the platform approaches a certain height for safety.
- Suitable for tight spaces due to its minimal turning radius and front-wheel drive.
