Name: NOBLELIFT SC14H 14M | Lift Sinergi
Brand: NOBLELIFT
SKU: 135
Availability: InStock

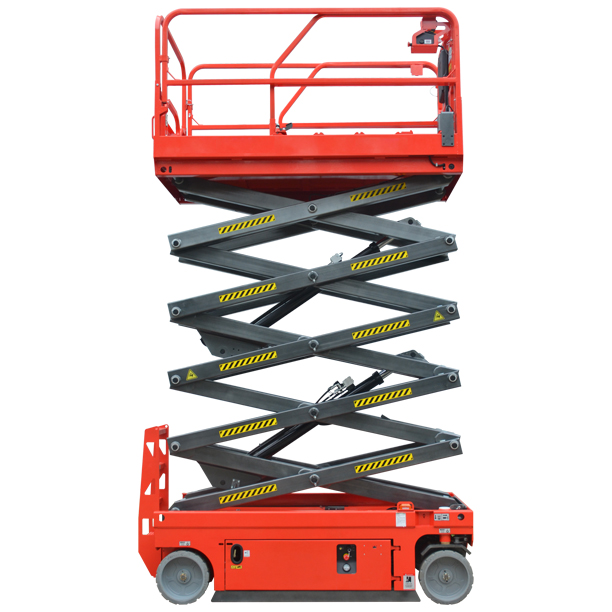

NOBLELIFT SC14H 14M | Lift Sinergi

Maximum Work Height			14m
Maximum Platform Floor Height			12m
Overall Length			2.48m
Overall Width			1.15m
Overall Height			2.04m
Platform Size			2.27x1.12m
Platform Extension Size			0.9m

Category: NOBLELIFT
Tags: Scissor Lift

Description
Reviews (0)

Here’s the translation of your points into English:
Design and Functionality:
NOBLELIFT SC series scissor lifts are designed for various tasks and operations at height.
Ideal for the industrial, energy, logistics warehouse, maintenance, and cleaning sectors.
The SC014H model can reach working heights of up to 14 meters.
Platform and Mechanism:
Platform dimensions: 2270 mm x 1120 mm with a platform extension of 900 mm.
Operated directly from the platform's operator station.
Hydraulic lifting system and hydrostatic drive provide smooth operation.
Ease of Operation:
Continuous operation can be performed with a single operator, no ground control required.
Portable control boxes allow troubleshooting and operation from outside the platform.
The chassis is equipped with a drawer-type electrical box for easy access to internal parts.
An integrated control panel on the chassis simplifies operation.
Safety Features:
Automatic error code display system simplifies troubleshooting and maintenance.
Emergency lowering system safely brings the operator to the ground during power failure.
Emergency stop buttons are available on both lifting and lowering controls.
Pothole protection system automatically engages when the platform is lifted.
Tilt protection system triggers an alarm and disables all actions except tilt protection when the platform exceeds its maximum operating angle.
Platform barriers can be folded down for safety and more compact storage.
Durability and Maintenance:
Durable, non-marking tires.
Manual overload valve allows the scissor lift to be moved during power failure.
Hour meter records operating time for scheduled maintenance.
Self-locking basket door for added operator safety.
Warning light (heat lamp) operates during use.
Main switch prevents battery discharge during storage and protects the battery and charger.
Operational Efficiency:
Proportional control handle adjusts lifting and travel speed.
Full-height travel capability allows movement and turning at any working height.
Travel speed automatically slows down when the platform reaches certain heights for safety.
Minimum turning radius with front-wheel drive and steering makes it ideal for tight spaces.
Transportation and Loading:
Standard-sized sleeves allow easy loading and lifting using a forklift.
Attachment points allow the platform to be moved using a crane.
Additional Features:
Automatic braking system prevents slipping on slopes.
Foldable platform barriers allow storage in confined spaces or to pass under height restrictions.
