Maximum Working Height (m) 15.87 Platform Capacity (kg) 227 Maximum Horizontal Reach (m) 7.62 Up-and-over clearance (m) 7.04 Weight (kg) 7190 Maximum Platform Height (m) 13.87 Length (m) 5.56 Width (m) 1.79 Height (m) 2.00 Power Electric or bi-energy Transportation Self-loader

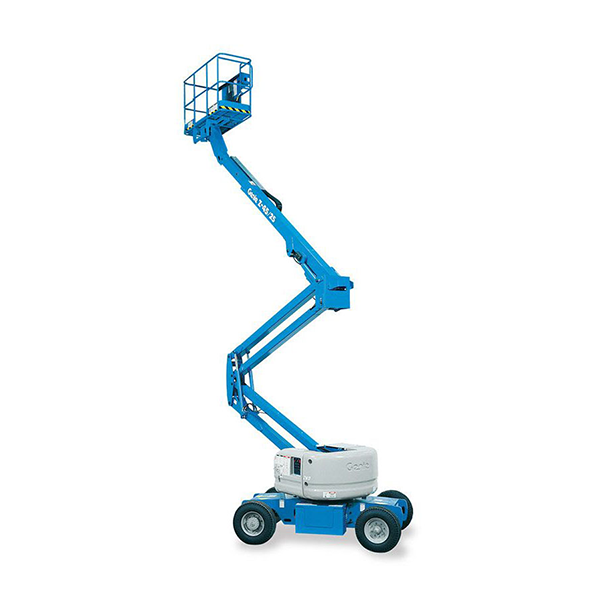

Ideal for outdoor construction and industrial applications, the Genie® Z®-45/25 articulating boom lift provides lifting versatility with a combination of up, out and up positioning capabilities with unmatched reach. This model's narrow turning radius and zero tailswing make it easy to maneuver in confined work areas.
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
Maximum Working Height (m) 15.95 m Maximum Platform Height (m) 13.95 m Lifting Capacity (kg) 350 kg Weight (kg) 3701 kg Length (m) 3.11 m Width (m) 1.41 m Platform Length with Extension (m) 4.33 m Occupancy (persons) 3 persons Power Source Electric (24 V DC, 300 Ah)
Max Working Height 14.30 m Capacity 136 kg Stowed Height 2.78 m Machine Width 0.74 m Weight 472 kg
Maximum Working Height (H1) 14 m Maximum Platform Height (H2) 12 m Platform Extension 1 m Lifting Capacity 350 kg Lifting Capacity on Extension 120 kg Max. Platform Occupancy 2 persons Platform Dimensions (B*C*A) 2.25 x 1.14 x 1.12 m Length and Width (E*F) 2.51 x 1.2 m Height (D) 2.55 m Height with Guardrails Folded (M) 1.87 m Wheelbase (G) 1.85 m Ground Clearance (H) 0.1 m Ground Clearance (Deployed Potholes) 0.019 m Turning Radius (Inside) 2.3 m Turning Radius (Outside) 2.3 m Raising/Lowering Time 61 / 42 s Drive Speed (Stowed) 3.4 km/h Drive Speed (Raised) 0.7 km/h Gradeability 25% Tilt (Front to Back/Side to Side) 3° / 2° Tire Size 406 x 127 mm Power Source 4×6V/225Ah Weight 3245 kg Dimensions 251 × 120 × 255 cm
Maximum Work Height 16m Maximum Platform Floor Height 14m Lift Capacity 230 kg Power Source 4 x 6V; 225 Ah Tire Size 406 mm x 127 mm x 138 mm Body Dimensions (L x W x H) 2420 mm x 1200 mm x 2640 mm Platform Dimensions (L x W x H) 2300 mm x 1150 mm x 1100 mm Platform Extension 1000 mm
