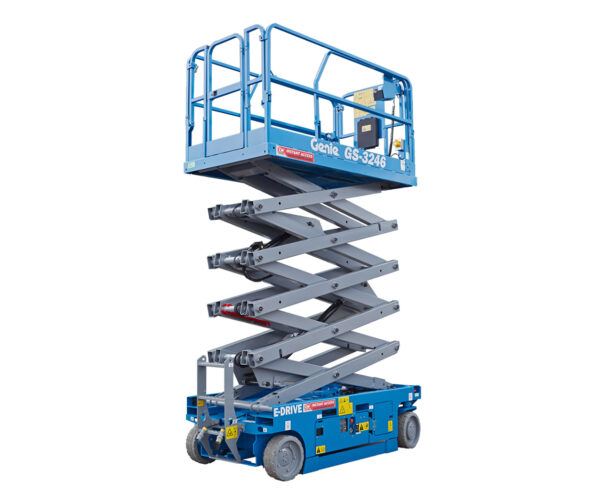

The Genie® GS™-3246 Plate Scissor Lift is an electric model that offers the versatility to work in indoor and outdoor construction, maintenance and installation applications on sturdy, level surfaces. Available with Genie® AC E-Drive or hydraulic drive configuration.
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
Maximum Working Height (m) 15.95 m Maximum Platform Height (m) 13.95 m Lifting Capacity (kg) 350 kg Weight (kg) 3701 kg Length (m) 3.11 m Width (m) 1.41 m Platform Length with Extension (m) 4.33 m Occupancy (persons) 3 persons Power Source Electric (24 V DC, 300 Ah)
Max Working Height 14.30 m Capacity 136 kg Stowed Height 2.78 m Machine Width 0.74 m Weight 472 kg
Maximum Working Height (H1) 14 m Maximum Platform Height (H2) 12 m Platform Extension 1 m Lifting Capacity 350 kg Lifting Capacity on Extension 120 kg Max. Platform Occupancy 2 persons Platform Dimensions (B*C*A) 2.25 x 1.14 x 1.12 m Length and Width (E*F) 2.51 x 1.2 m Height (D) 2.55 m Height with Guardrails Folded (M) 1.87 m Wheelbase (G) 1.85 m Ground Clearance (H) 0.1 m Ground Clearance (Deployed Potholes) 0.019 m Turning Radius (Inside) 2.3 m Turning Radius (Outside) 2.3 m Raising/Lowering Time 61 / 42 s Drive Speed (Stowed) 3.4 km/h Drive Speed (Raised) 0.7 km/h Gradeability 25% Tilt (Front to Back/Side to Side) 3° / 2° Tire Size 406 x 127 mm Power Source 4×6V/225Ah Weight 3245 kg Dimensions 251 × 120 × 255 cm
Maximum Work Height 16m Maximum Platform Floor Height 14m Lift Capacity 230 kg Power Source 4 x 6V; 225 Ah Tire Size 406 mm x 127 mm x 138 mm Body Dimensions (L x W x H) 2420 mm x 1200 mm x 2640 mm Platform Dimensions (L x W x H) 2300 mm x 1150 mm x 1100 mm Platform Extension 1000 mm
